Take a tour of Ben Ainslie Racing base as it nears completion

If you are in any doubt as to how serious the latest British

assault on the America’s Cup is, there is one simple way of appreciating

the effort and commitment that is going in to bringing the Cup back to

Britain – just take a look at Ben Ainslie Racing’s base.

With the building now entering the final months of fit out, the

striking 28m tall structure on Camber Quay in Portsmouth is impossible

to miss.

Admittedly it’s still a building site and clearly you won’t get

access, but you don’t need to in order to get a feel for how big an

undertaking this building and the Cup campaign really is. Simply arrange

your day to have lunch at The Still & West pub opposite the new BAR

base and you’ll have a great view of the works.

Fortunately I was taken a step further last week and given a guided tour of the building.

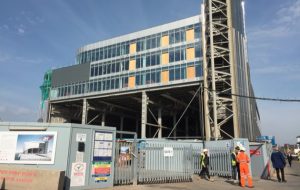

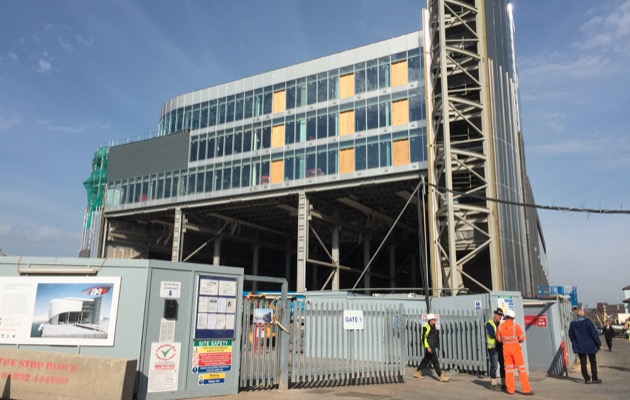

image: https://www.yotspot.com/blog/wp-content/uploads/2023/09/IMG_3416-300×190.jpg

In 13 years of covering the modern America’s Cup I have seen and been

inside of plenty of impressive America’s Cup, bases but this one is

something very different. The size of a shopping centre, the BAR base is

no temporary structure designed for a couple of years’ lead up to the

35^th AC in 2017, this building is here to stay. Not only

that, but the building itself has presented some interesting technical

challenges, not least catering for the giant openings at the front. Here

three huge three storey high bays each have a crane running on girders

inside the building that can carry up to 30 tonnes each.

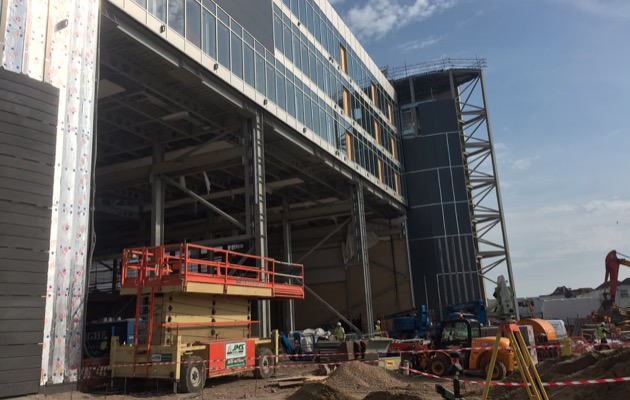

image: https://www.yotspot.com/blog/wp-content/uploads/2023/09/IMG_3411-300×190.jpg

According to project manager Richard Pelley of Allied Developments,

the building needs to withstand each of these cranes being brought to a

halt at the same time with their full load 90 tonnes in place.

Preventing the building from twisting, with such a large opening at one

end has been quite a challenge apparently.

image: https://www.yotspot.com/blog/wp-content/uploads/2023/09/IMG_3365-300×190.jpg

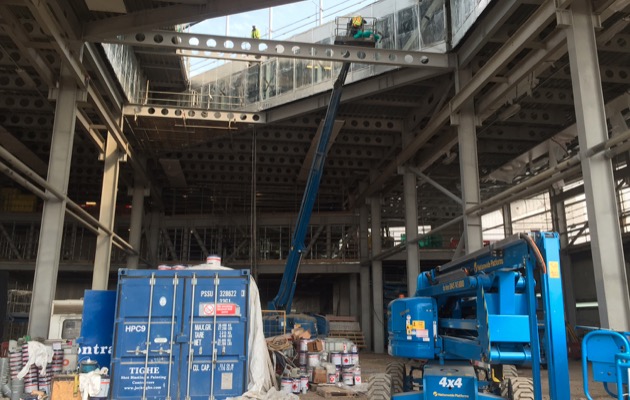

One of the bays in which hulls and wings will be craned in. The glass

atrium above allows light to enter down the centre of the building but

also allows those in the offices above to see what is going on below.

image: https://www.yotspot.com/blog/wp-content/uploads/2023/09/IMG_3372-300×190.jpg

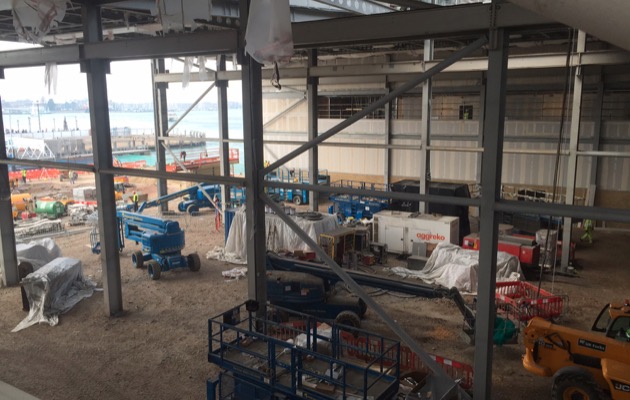

Looking down into the bays from the public gallery.

image: https://www.yotspot.com/blog/wp-content/uploads/2023/09/IMG_3367-300×190.jpg

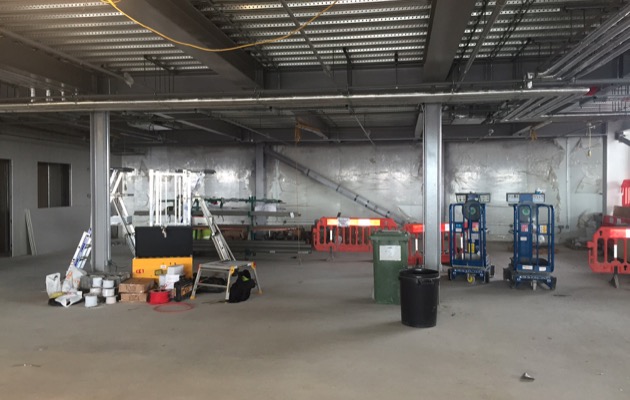

What will be the gym

image: https://www.yotspot.com/blog/wp-content/uploads/2023/09/IMG_3388-300×190.jpg

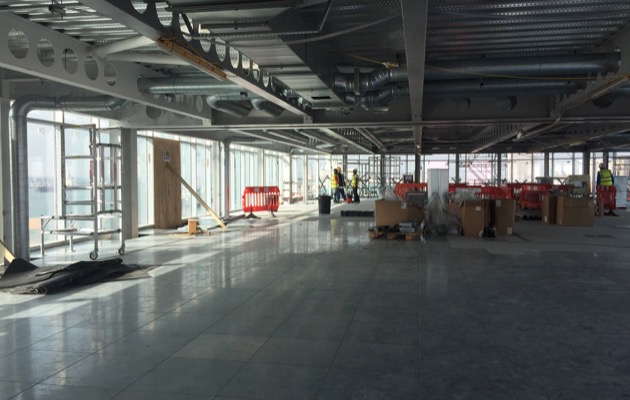

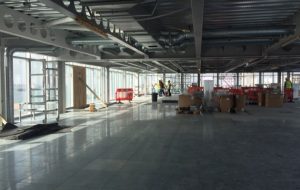

The VIP floor provides a superb view of the harbour but also the race area and will be used for the first ACWS event of 2015.

image: https://www.yotspot.com/blog/wp-content/uploads/2023/09/IMG_3384-300×190.jpg

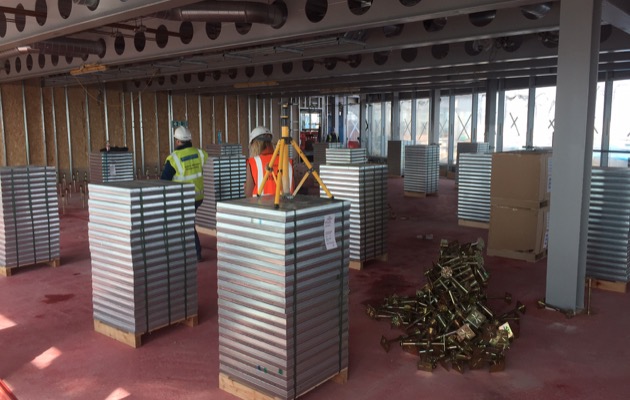

Laying the floor for the visitor centre. The I beams with their

circular cut outs are particularly unusual and help reduce the all up

weight of the building while also allowing the building’s pipe work and

services to pass through them rather than being led under the floor.

image: https://www.yotspot.com/blog/wp-content/uploads/2023/09/IMG_3397-300×190.jpg

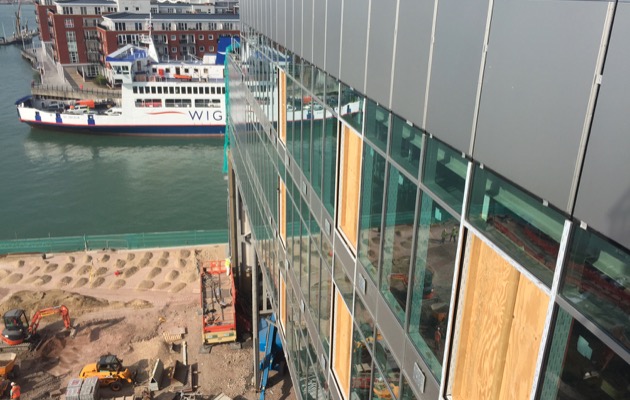

Looking north towards the IOW ferry terminal and Gunwharf Quays from

the impressive triangular section stairwell. Allowing the building to

heat up through the glazing while then keeping the heat in with

insulation and then cooling it with the solar powered air conditioning

has been a challenge too.

image: https://www.yotspot.com/blog/wp-content/uploads/2023/09/IMG_3391-300×190.jpg

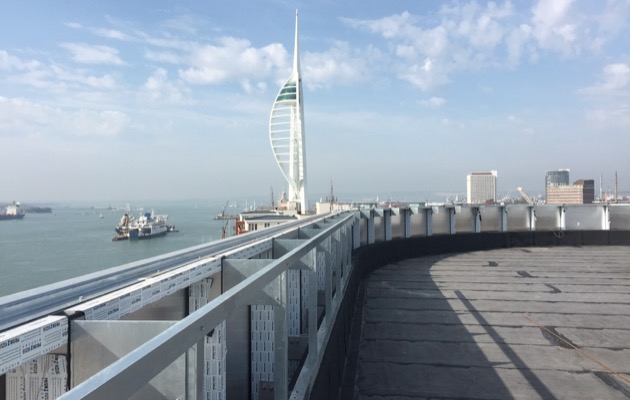

On the roof of the building looking north to the Spinnaker Tower
